Evaluation, Boundaries, and Generalization (Some more ML Concepts)

Evaluation, Boundaries, and Generalization (Some more ML Concepts)#

Machine learning models do not just make predictions, they draw boundaries in data. Understanding these boundaries helps us understand why models succeed, and why they fail.

Understanding the Decision Boundary#

The Decision Boundary is the abstract line (in 2D), curve, or surface (in higher dimensions) that separates different classes in the feature space.

The feature space is the geometric representation of data using input variables (features). Each data point becomes a point in this space.

The decision boundary represents the region where the model switches its prediction from one class to another

Figure: Example of a decision boundary separating two classes in feature space.

Wherever the model’s prediction changes, the boundary lies.

K-Nearest Neighbors (KNN) and Its Boundary#

To make this idea concrete, let us examine how decision boundaries appear in a specific model: K-Nearest Neighbors (KNN).

KNN classifies a new point based on the majority label of its k closest neighbors.

For KNN, the decision boundary is inherently complex and non-linear. The decision boundary (its shape) in KNN depends entirely on:

  • The distribution of training data points

  • The value of k

Figure: Decision boundaries for different values of k in KNN.

The boundary exists where the majority vote of the \(k\) closest neighbors changes.

  • A small \(k\) results in a very jagged, flexible boundary.

  • A large \(k\) results in a very smooth, simple boundary.

For example, here for Small K (i.e K=1):

  • Ignores broader patterns, focusing only on the closest point.

  • Decision Boundary: Irregular and jagged—highly sensitive to individual data points.

  • Behavior: Overfits, memorizes training data and lacks generalization (captures noise rather than general structure).

For Large K (i.e. K=N (All Data Points as Neighbors)) :

  • Decision Boundary: Smooth and overly simplistic.

  • Behavior: Underfits, ignores local structure and treats the entire dataset as a single group.

  • The model treats most of the dataset similarly and may predict the majority class for nearly all inputs.

    • Predicts the mode (classification) or average (regression) for all new points.

This example illustrates a core idea: Model complexity directly influences the shape of the decision boundary.

The Core Challenge: Generalization, Overfitting, and Underfitting#

Generalization#

The ultimate goal of Machine Learning is generalization: the model’s ability to perform well on new, previously unseen data.

A model that performs well on training data but poorly on new data has failed to generalize.

To measure generalization, we use a test set, which contains data not seen during training. The test set provides the most reliable estimate of real-world performance. Poor generalization results from either Underfitting or Overfitting.

Figure: Underfitting vs. overfitting illustrated through model complexity.

The Bias-Variance Trade-off#

Overfitting and underfitting arise from a fundamental trade-off known as the bias–variance trade-off.

Model performance is a balance between two types of errors:

  1. Bias (Underfitting): The error introduced by the model being too simple to capture the true patterns. i.e in KNN, high bias occurs when k is very large, causing excessive averaging.

  2. Variance (Overfitting): The error introduced by the model being too complex and capturing noise/outliers specific to the training data. i.e in KNN, high variance occurs when k is very small (e.g., k = 1).

Underfitting (High Bias)#

  • Definition: The model is too simple and fails to learn the basic patterns.

  • Indicator: Low accuracy on both Training and Test data.

  • In KNN: Caused by a very large \(k\). The model is too constrained by averaging too many points.

Overfitting (High Variance)#

  • Definition: The model learns the training data too well, memorizing noise instead of general rules.

  • Indicator: Very High Training Accuracy, but Significantly Lower Test Accuracy.

  • In KNN: Caused by a very small \(k\) (e.g., \(k=1\)). The boundary is too complex and sensitive to noise.

The key is to adjust the model’s complexity (like changing \(k\)) to maximize Generalization (Test Accuracy) without sacrificing too much Training Accuracy.

Pandas Illustration

Underfitting vs Overfitting#

Type

Description

Visual Intuition

Underfitting

Model too simple: fails to capture patterns

High train & test error

Overfitting

Model too complex: memorizes training data

Low train, high test error

Back to KNN: Understanding the KNN Decision Boundary#

K-Nearest Neighbors (KNN) is an instance-based learning algorithm.
It doesn’t build an explicit mathematical model; instead, it classifies new points based on the majority vote of their k nearest neighbors.

  • Each point is classified by looking at its neighbors in the feature space.

  • Decision boundaries are formed where the majority class changes, often resulting in non-linear, curved boundaries.

  • As k increases, the boundary becomes smoother (less sensitive to noise).

Let’s visualize how KNN creates these boundaries using two features of the Iris dataset.

# --- Visualizing KNN Decision Boundaries ---

import numpy as np
import matplotlib.pyplot as plt
from sklearn.neighbors import KNeighborsClassifier
from sklearn.datasets import load_iris
from matplotlib.colors import ListedColormap

# Load data
iris = load_iris()
X = iris.data[:, :2]  # Use only first two features for easy visualization
y = iris.target

# Train KNN model
knn = KNeighborsClassifier(n_neighbors=5)
knn.fit(X, y)

# Create a mesh grid (like pixels for the background)
x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.02),
                     np.arange(y_min, y_max, 0.02))

# Predict class for each point in mesh grid
Z = knn.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Define color maps
cmap_light = ListedColormap(['#FFAAAA', '#AAFFAA', '#AAAAFF'])
cmap_bold  = ListedColormap(['#FF0000', '#00FF00', '#0000FF'])

# Plot decision boundary
plt.figure(figsize=(8, 6))
plt.contourf(xx, yy, Z, cmap=cmap_light)

# Plot training points
plt.scatter(X[:, 0], X[:, 1], c=y, cmap=cmap_bold, edgecolor='k', s=50)
plt.title("🌸 KNN Decision Boundary (k = 5)")
plt.xlabel("Sepal length (cm)")
plt.ylabel("Sepal width (cm)")
plt.show()

/opt/hostedtoolcache/Python/3.11.14/x64/lib/python3.11/site-packages/IPython/core/pylabtools.py:170: UserWarning: Glyph 127800 (\N{CHERRY BLOSSOM}) missing from font(s) DejaVu Sans.
  fig.canvas.print_figure(bytes_io, **kw)
../_images/f81d2e7763f93f5a48ca9b0cc6a2a92fb4c22cc9d0d16d96cfe113bb47a1aa9e.png

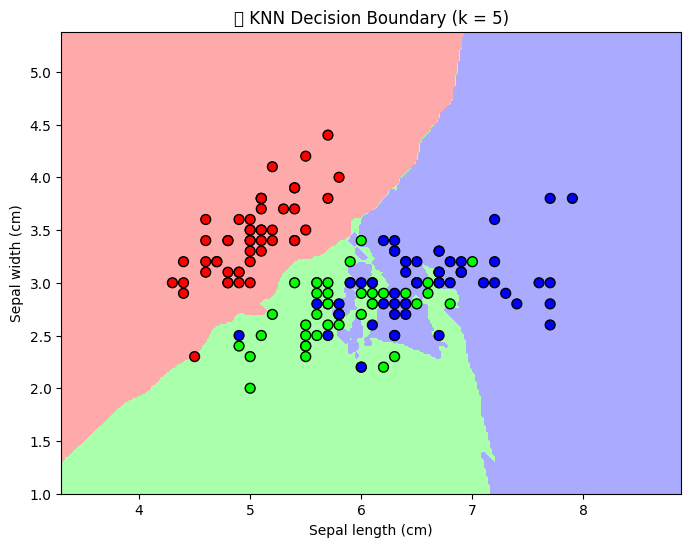

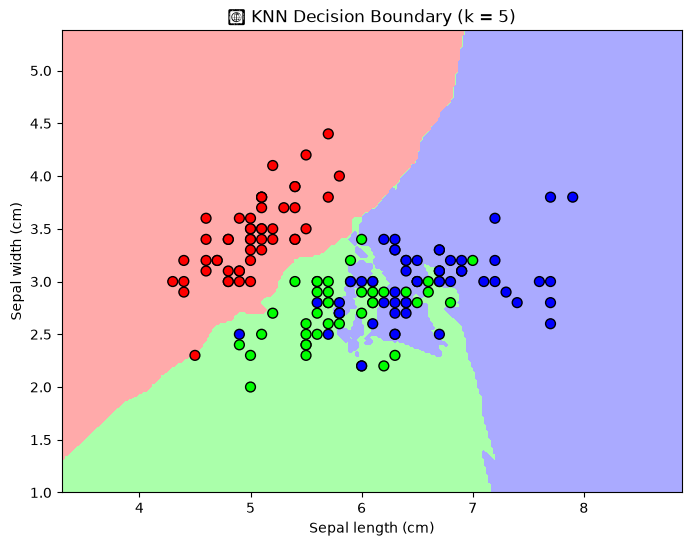

Discussion:

  • Notice how the colored regions represent KNN’s decision boundaries; areas where the algorithm assigns new samples to a specific class.

  • The boundaries are flexible and follow the data, unlike linear models.

  • Use our Interative Visualization, try changing n_neighbors (e.g., 1, 3, 10) to see how it affects the smoothness of boundaries.
