Step 1: Standardize the Data#
PCA is sensitive to scale. A feature measured in kilometres will dominate one measured in grams purely because of its larger numbers, not because it is more informative.
Mean-centring#
Subtract the mean of each feature so the data cloud sits at the origin: $\(\tilde{x}_{ij} = x_{ij} - \bar{x}_j\)$
Standardisation (z-score)#
Divide by the standard deviation so all features have unit variance: $\(z_{ij} = \frac{x_{ij} - \bar{x}_j}{\sigma_j}\)$
Remember: Always standardise before PCA unless your features are already on the same scale and you explicitly want to weight by raw variance.
Once we standardize, mean becomes 0 and standard deviation becomes 1; ensures all features contribute equally.
# ── Step 1: standardise ───────────────────────────────
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X_raw)
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
colors = ['#D85A30', '#378ADD', '#1D9E75', '#7F77DD']
for i, (ax, X_plot, title) in enumerate(zip(
axes,
[X_raw, X_scaled],
['Raw features (original scale)', 'After StandardScaler (mean=0, std=1)'])):
for j, (fname, col) in enumerate(zip(feature_names, colors)):
ax.hist(X_plot[:, j], bins=20, alpha=0.6, color=col, label=fname)
ax.set_title(title, fontsize=12)
ax.set_xlabel('Value'); ax.set_ylabel('Count')
ax.legend(fontsize=9)

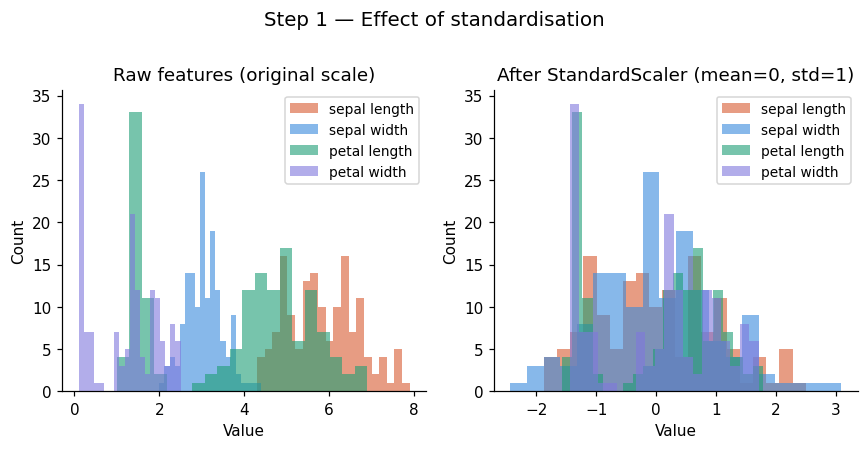

plt.suptitle('Step 1 — Effect of standardisation', fontsize=13, y=1.01)
plt.tight_layout(); plt.show()
print("Means (should be ~0):", X_scaled.mean(axis=0).round(10))
print("StdDevs (should be ~1):", X_scaled.std(axis=0).round(3))
Means (should be ~0): [-0. -0. -0. -0.]
StdDevs (should be ~1): [1. 1. 1. 1.]
Step 2: Compute Covariance Matrix#
Before PCA can find anything, it needs to understand how your features relate to each other. This is the job of the covariance matrix C.
The covariance matrix tells us how features vary together.
Sign |
Meaning |
|---|---|
Positive |
Features increase together |
Negative |
One rises as the other falls |
Zero |
No linear relationship |
This helps PCA understand relationships between features.
Formula#
For a dataset \(X\) with \(n\) samples and \(p\) features (already mean-centred), the covariance matrix is:
It is a \(p \times p\) symmetric matrix where:
Diagonal entries \(C_{ii}\) = variance of feature \(i\)
Off-diagonal entries \(C_{ij}\) = covariance between feature \(i\) and feature \(j\)
Symmetry: \(C_{ij} = C_{ji}\) always
For a 3-feature dataset it looks like:
Entry |
Meaning |
|---|---|
Diagonal \(C_{ii}\) |
Variance of feature \(i\) |
Off-diagonal \(C_{ij} > 0\) |
Features move together |
Off-diagonal \(C_{ij} < 0\) |
Features move oppositely |
Off-diagonal \(C_{ij} = 0\) |
No linear relationship |
Key insight: If features are correlated, there are directions in the data space that capture more variance than any single original axis. PCA finds exactly those directions via eigendecomposition of C.
# ── Step 2: covariance matrix ─────────────────────────
n = X_scaled.shape[0]
C = (X_scaled.T @ X_scaled) / (n - 1)
print("Covariance matrix C (4×4):\n", np.round(C, 3))
print("\nMax difference vs np.cov:", np.abs(C - np.cov(X_scaled.T)).max())
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
sns.heatmap(C, annot=True, fmt='.2f', cmap='RdBu_r', center=0,
xticklabels=feature_names, yticklabels=feature_names,
linewidths=0.5, vmin=-1, vmax=1, ax=axes[0])
axes[0].set_title('Covariance matrix C', fontsize=12)
axes[0].tick_params(axis='x', rotation=25)
axes[1].bar(feature_names, np.diag(C), color='#534AB7', alpha=0.85)
axes[1].set_title('Diagonal: variance per feature\n(all = 1.0 after scaling)', fontsize=12)
axes[1].set_ylabel('Variance'); axes[1].tick_params(axis='x', rotation=20)
axes[1].set_ylim(0, 1.3)
for i, v in enumerate(np.diag(C)):
axes[1].text(i, v + 0.03, f'{v:.2f}', ha='center', fontsize=11)

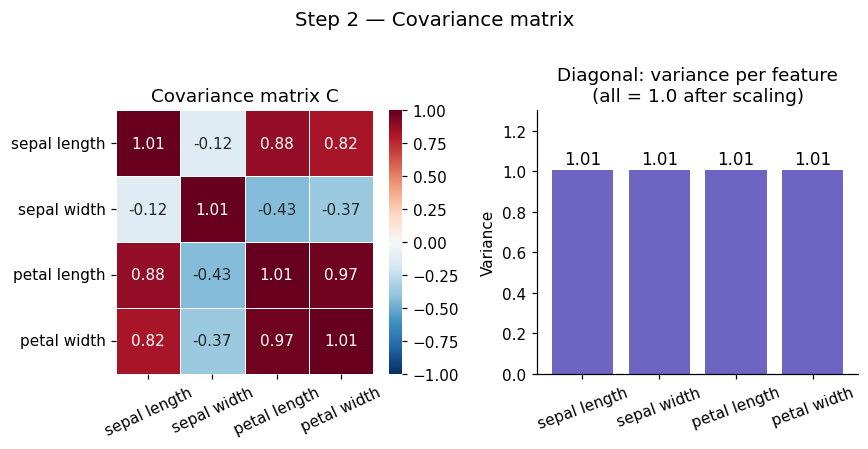

plt.suptitle('Step 2 — Covariance matrix', fontsize=13, y=1.01)
plt.tight_layout(); plt.show()
Covariance matrix C (4×4):
[[ 1.007 -0.118 0.878 0.823]
[-0.118 1.007 -0.431 -0.369]
[ 0.878 -0.431 1.007 0.969]
[ 0.823 -0.369 0.969 1.007]]
Max difference vs np.cov: 4.440892098500626e-16
Step 3: Eigendecomposition#
The core of PCA is solving the eigenvalue problem:
Where:
Symbol |
Name |
Role |
|---|---|---|
\(C\) |
Covariance matrix |
Encodes all feature relationships |
\(\mathbf{v}\) |
Eigenvector (direction) |
A principal component axis in feature space |
\(\lambda\) |
Eigenvalue (importance) |
Variance captured along that direction |
Eigenvectors are the directions the covariance matrix only stretches, never rotates. Eigenvalues tell you how much it stretches — i.e. how much variance lies along that direction.
This gives us our principal components, a new set of axes aligned with the natural structure of the data, ordered by how much they explain.
Properties#
There are exactly \(p\) eigenpairs for a \(p \times p\) matrix
Eigenvectors are orthogonal (perpendicular) to each other; PCs are uncorrelated by construction
Sort by \(\lambda\) descending: PC1 = maximum variance, PC2 = second most, etc.
\(\sum_i \lambda_i = p\) (total variance equals number of features, after standardisation)
Step 4: Sort Components#
Eigendecomposition returns \(p\) eigenpairs in arbitrary order. We sort them so the most informative components come first:
Sort eigenvalues in descending order
Reorder eigenvectors to match (each eigenvector travels with its eigenvalue)
Select top \(k\) eigenvectors — these are your \(k\) principal components
Most important directions first. PC1 always captures the most variance, PC2 the second most, and so on.
# ── Step 3: eigendecomposition ────────────────────────
eigenvalues, eigenvectors = np.linalg.eigh(C) # eigh = symmetric matrix, returns real values
# Sort descending
idx = np.argsort(eigenvalues)[::-1]
eigenvalues = eigenvalues[idx]
eigenvectors = eigenvectors[:, idx] # each COLUMN is a principal component
print("Eigenvalues (= variance per PC):")
for i, (val, vec) in enumerate(zip(eigenvalues, eigenvectors.T)):
print(f" PC{i+1}: λ = {val:.4f} ({val/eigenvalues.sum()*100:.1f}% of variance)")
print(f" loadings: {np.round(vec, 3)}")
print(f"\nSum of eigenvalues = {eigenvalues.sum():.1f} (= p = {C.shape[0]}, checks out)")
# Visualise loadings (how much each original feature contributes to each PC)
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
x = np.arange(len(feature_names))
width = 0.2
pc_colors = ['#534AB7', '#D85A30', '#1D9E75', '#888780']
for i in range(4):
axes[0].bar(x + i*width, eigenvectors[:, i], width, label=f'PC{i+1}',
color=pc_colors[i], alpha=0.85)
axes[0].set_xticks(x + width*1.5); axes[0].set_xticklabels(feature_names, rotation=20)
axes[0].axhline(0, color='grey', lw=0.8, ls='--')
axes[0].set_title('PC loadings (eigenvectors)', fontsize=12)
axes[0].set_ylabel('Loading weight'); axes[0].legend(fontsize=9)
sns.heatmap(eigenvectors, annot=True, fmt='.2f', cmap='RdBu_r', center=0,
xticklabels=[f'PC{i+1}' for i in range(4)],
yticklabels=feature_names, linewidths=0.5, vmin=-1, vmax=1, ax=axes[1])
axes[1].set_title('Loading heatmap', fontsize=12)

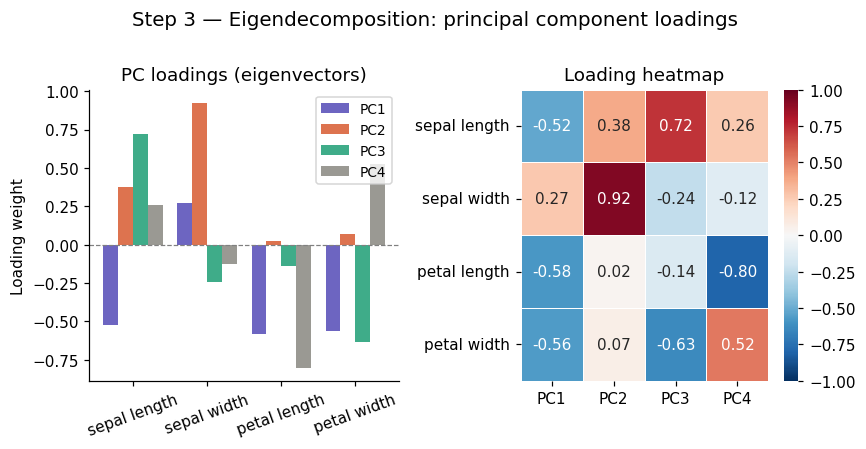

plt.suptitle('Step 3 — Eigendecomposition: principal component loadings', fontsize=13, y=1.01)
plt.tight_layout(); plt.show()
Eigenvalues (= variance per PC):
PC1: λ = 2.9381 (73.0% of variance)
loadings: [-0.521 0.269 -0.58 -0.565]
PC2: λ = 0.9202 (22.9% of variance)
loadings: [0.377 0.923 0.024 0.067]
PC3: λ = 0.1477 (3.7% of variance)
loadings: [ 0.72 -0.244 -0.142 -0.634]
PC4: λ = 0.0209 (0.5% of variance)
loadings: [ 0.261 -0.124 -0.801 0.524]
Sum of eigenvalues = 4.0 (= p = 4, checks out)
# ── Step 4: sort eigenpairs descending ───────────────
eigenvalues_raw, eigenvectors_raw = np.linalg.eigh(C)
print("Before sorting (eigh returns ascending order):")
for i, (lam, vec) in enumerate(zip(eigenvalues_raw, eigenvectors_raw.T)):
print(f" pair {i+1}: λ = {lam:.4f}")
# Sort descending
idx_sorted = np.argsort(eigenvalues_raw)[::-1]
eigenvalues = eigenvalues_raw[idx_sorted]
eigenvectors = eigenvectors_raw[:, idx_sorted]
print("\nAfter sorting (descending):")
for i, lam in enumerate(eigenvalues):
print(f" PC{i+1}: λ = {lam:.4f} ← {'most' if i==0 else 'least' if i==len(eigenvalues)-1 else 'next'} important")
# Visualise sorted eigenvalues
fig, ax = plt.subplots(figsize=(6, 4))
bars = ax.bar([f'PC{i+1}' for i in range(len(eigenvalues))],
eigenvalues, color=['#534AB7','#7F77DD','#AFA9EC','#D3D1C7'], alpha=0.9)
ax.set_ylabel('Eigenvalue (variance)')

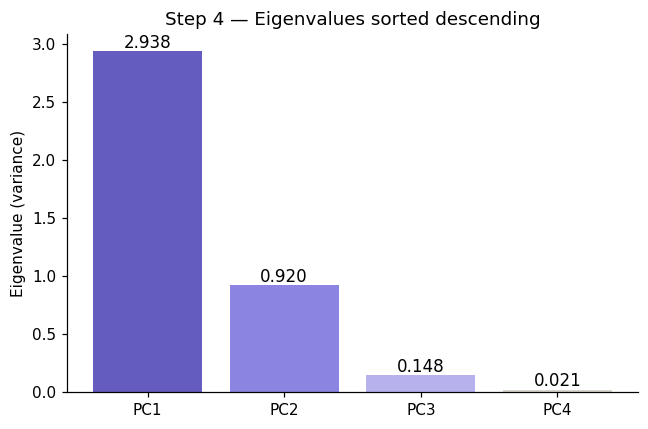

ax.set_title('Step 4 — Eigenvalues sorted descending', fontsize=12)
for bar, val in zip(bars, eigenvalues):
ax.text(bar.get_x() + bar.get_width()/2, val + 0.03, f'{val:.3f}',
ha='center', fontsize=11)
plt.tight_layout(); plt.show()
Before sorting (eigh returns ascending order):
pair 1: λ = 0.0209
pair 2: λ = 0.1477
pair 3: λ = 0.9202
pair 4: λ = 2.9381
After sorting (descending):
PC1: λ = 2.9381 ← most important
PC2: λ = 0.9202 ← next important
PC3: λ = 0.1477 ← next important
PC4: λ = 0.0209 ← least important
Step 5: Choose Number of Components (k)#
We don’t always keep all \(p\) components; only those that preserve most of the variance. How many components should you keep? We need to know the explained variance ratio of PC \(i\).
Explained Variance Ratio (EVR)#
Measures how much variance each individual PC explains:
Example:
PC1 = 50%
PC2 = 30%
PC3 = 20%
Cumulative Explained Variance (CEV)#
Total variance retained by the first \(k\) components combined:
Example:
First 2 PCs = 80%
If threshold = 80% → keep 2 PCs
Rules of thumb for choosing k#
Rule |
Description |
|---|---|
Scree plot elbow |
Pick \(k\) where the curve bends — adding more PCs gives diminishing returns |
Variance threshold |
Keep enough PCs to explain ≥ 95% (or 90%) of variance |
Kaiser criterion |
Keep PCs with \(\lambda_i > 1\) (captures more than one average feature’s worth of variance) |
Downstream task |
For K-Means clustering, 2–10 components is usually sufficient |
Step 6: Transform the Data (Projection to Lower Dimensions)#
Once you have selected the top \(k\) eigenvectors, project the data onto them:
Where:
\(X\) is the standardised data matrix — shape \((n \times p)\)
\(W = [\mathbf{v}_1 \mid \mathbf{v}_2 \mid \cdots \mid \mathbf{v}_k]\) — the top \(k\) eigenvectors stacked as columns, shape \((p \times k)\)
\(Z\) is the reduced data matrix — shape \((n \times k)\)
What this achieves#
Before |
After |
|---|---|
\(n\) samples × \(p\) original features |
\(n\) samples × \(k\) principal components |
Features may be correlated |
Components are uncorrelated by construction |
High-dimensional, noisy |
Lower-dimensional, most information preserved |
The projection is a rotation of the coordinate axes; no information is added, only the least-variant dimensions are discarded.
Benefits and Limitations of PCA#
PCA reduces dimensionality, improves computational efficiency, and makes data easier to visualize (especially in 2D or 3D). By removing correlated features, it can also help reduce overfitting.
However, PCA assumes linear relationships, and the resulting components can be difficult to interpret. Since it is unsupervised, it does not consider output labels and may lose some information during compression.
PCA is one of the most important tools for:
Data preprocessing
Noise reduction
Feature extraction
Visualization
from IPython.display import HTML
HTML("""
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>PCA Variance Intuition</title>
<style>
* { box-sizing: border-box; margin: 0; padding: 0; }
body { font-family: sans-serif; background: #fff; color: #3d3d3a; padding: 24px; }
h2 { font-size: 18px; font-weight: 500; margin-bottom: 4px; }
p { font-size: 14px; color: #5f5e5a; margin-bottom: 16px; }
canvas { display: block; border: 1px solid #e8e6df; border-radius: 8px; }
.ctrl { display: flex; align-items: center; gap: 10px; font-size: 13px; color: #5f5e5a; margin: 10px 0 0; }
.ctrl input { flex: 1; }
.ctrl span { min-width: 36px; font-size: 13px; color: #2c2c2a; font-weight: 500; }
.ctrl label { min-width: 90px; }
.legend { display: flex; gap: 20px; margin: 10px 0 0; font-size: 12px; color: #5f5e5a; }
.dot { width: 10px; height: 10px; border-radius: 50%; display: inline-block; margin-right: 5px; vertical-align: middle; }
@media (prefers-color-scheme: dark) {
body { background: #1e1e1c; color: #c2c0b6; }
h2 { color: #e8e6df; }
p { color: #888780; }
canvas { border-color: #3d3d3a; }
.ctrl { color: #888780; }
.ctrl span { color: #e8e6df; }
.legend { color: #888780; }
}
</style>
</head>
<body>
<h2>PCA — variance intuition</h2>
<p>Drag the sliders to rotate and stretch the data cloud. PC1 always aligns with the direction of maximum variance.</p>
<canvas id="c" width="680" height="340"></canvas>
<div class="ctrl">
<label>Correlation angle</label>
<input type="range" id="corr" min="-90" max="90" value="40" step="1">
<span id="corr-out">40°</span>
</div>
<div class="ctrl">
<label>Spread ratio</label>
<input type="range" id="spread" min="1" max="5" value="3" step="0.1">
<span id="spread-out">3.0×</span>
</div>
<div class="legend">
<span><span class="dot" style="background:#378ADD"></span>Data points</span>
<span><span class="dot" style="background:#D85A30"></span>PC1 (max variance)</span>
<span><span class="dot" style="background:#1D9E75"></span>PC2 (orthogonal)</span>
</div>
<script>
const canvas = document.getElementById('c');
const ctx = canvas.getContext('2d');
const W = 680, H = 340, cx = W / 2, cy = H / 2;
let angle = 40, spread = 3;
let pts = [];
function gen() {
pts = [];
const a = angle * Math.PI / 180;
for (let i = 0; i < 180; i++) {
const u = (Math.random() - 0.5) * spread * 55;
const v = (Math.random() - 0.5) * 18;
pts.push({
x: u * Math.cos(a) - v * Math.sin(a),
y: u * Math.sin(a) + v * Math.cos(a)
});
}
}
function draw() {
ctx.clearRect(0, 0, W, H);
const dark = matchMedia('(prefers-color-scheme:dark)').matches;
const textCol = dark ? '#c2c0b6' : '#3d3d3a';
const gridCol = dark ? 'rgba(255,255,255,0.06)' : 'rgba(0,0,0,0.06)';
ctx.strokeStyle = gridCol; ctx.lineWidth = 1;
for (let x = 40; x < W; x += 60) { ctx.beginPath(); ctx.moveTo(x, 0); ctx.lineTo(x, H); ctx.stroke(); }
for (let y = 20; y < H; y += 60) { ctx.beginPath(); ctx.moveTo(0, y); ctx.lineTo(W, y); ctx.stroke(); }
for (const p of pts) {
ctx.beginPath();
ctx.arc(cx + p.x, cy - p.y, 3.5, 0, Math.PI * 2);
ctx.fillStyle = 'rgba(55,138,221,0.55)';
ctx.fill();
}
const a = angle * Math.PI / 180;
const len = Math.min(W, H) * 0.44 * Math.max(1, spread / 3);
ctx.lineWidth = 2.5;
ctx.strokeStyle = '#D85A30';
ctx.setLineDash([]);
ctx.beginPath();
ctx.moveTo(cx - Math.cos(a) * len, cy + Math.sin(a) * len);
ctx.lineTo(cx + Math.cos(a) * len, cy - Math.sin(a) * len);
ctx.stroke();
const a2 = a + Math.PI / 2;
const len2 = len * 0.28;
ctx.strokeStyle = '#1D9E75';
ctx.beginPath();
ctx.moveTo(cx - Math.cos(a2) * len2, cy + Math.sin(a2) * len2);
ctx.lineTo(cx + Math.cos(a2) * len2, cy - Math.sin(a2) * len2);
ctx.stroke();
const lx = cx + Math.cos(a) * len + 8, ly = cy - Math.sin(a) * len;
ctx.fillStyle = '#D85A30'; ctx.font = '13px sans-serif';
ctx.fillText('PC1', Math.min(lx, W - 40), Math.max(ly, 14));
const lx2 = cx + Math.cos(a2) * len2 + 6, ly2 = cy - Math.sin(a2) * len2;
ctx.fillStyle = '#1D9E75';
ctx.fillText('PC2', Math.min(lx2, W - 40), Math.max(ly2, 14));
ctx.fillStyle = textCol; ctx.font = '12px sans-serif';
ctx.fillText('Drag sliders to rotate and stretch the data cloud', 12, H - 10);
}
gen(); draw();
document.getElementById('corr').oninput = function () {
angle = +this.value;
document.getElementById('corr-out').textContent = angle + '°';
gen(); draw();
};
document.getElementById('spread').oninput = function () {
spread = +this.value;
document.getElementById('spread-out').textContent = spread.toFixed(1) + '×';
gen(); draw();
};
</script>
</body>
</html>
""")
PCA — variance intuition
Drag the sliders to rotate and stretch the data cloud. PC1 always aligns with the direction of maximum variance.
#PCA in Practice (using Scklearn)
## Step 1: Import Libraries
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from sklearn.datasets import load_iris
##Step 2: Load Data
data = load_iris()
X = data.data
y = data.target
##Step 3: Standardize
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)
##Step 4: Apply PCA
pca = PCA(n_components=2)
X_pca = pca.fit_transform(X_scaled)
## Step 5: Check Variance Retained
print("Explained variance ratio:", pca.explained_variance_ratio_)
print("Total variance retained:", sum(pca.explained_variance_ratio_))
##Step 6: Visualize

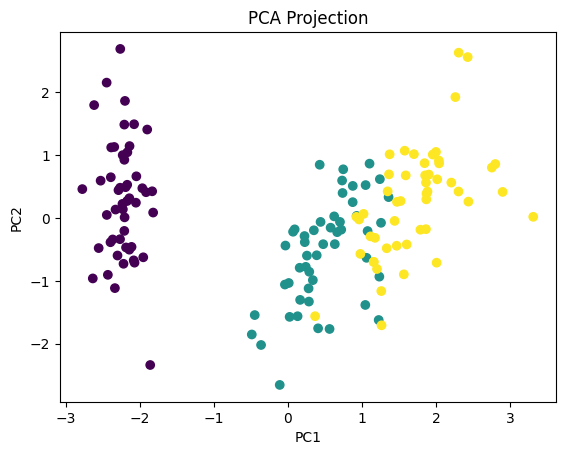

plt.scatter(X_pca[:, 0], X_pca[:, 1], c=y)
plt.xlabel("PC1")
plt.ylabel("PC2")
plt.title("PCA Projection")
plt.show()
Explained variance ratio: [0.72962445 0.22850762]
Total variance retained: 0.9581320720000166
What We Achieved We reduced: From 4 dimensions → 2 dimensions. While still preserving most of the structure. This is why PCA is so powerful.
