A Story That Becomes Data

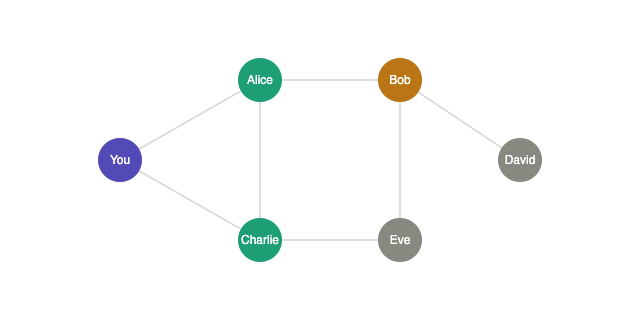

Imagine your first week at university. You meet Alice during orientation and Charlie in class. Alice later introduces you to Bob, who in turn knows David. Meanwhile Charlie knows Eve. At first this is just a story, five people, a handful of introductions.

But as a data scientist, you start asking structural questions. Who is most connected? Who acts as a bridge between groups? Can you reach David without going through Alice? If Alice leaves the university, does the network stay connected?

To answer these, we need to convert the story into a formal structure: a graph.

What is a Graph?

A graph is a structure that represents:

• Nodes (Vertices): entities (people, cities, users)

• Edges: relationships (friendship, roads, links)

Key Idea: Graph = Data + Relationships

Definition

A graph is a mathematical structure:

\[G = (V, E)\]

Symbol	Meaning	Example
V	Set of vertices (nodes)	{You, Alice, Bob, Charlie, David, Eve}
E	Set of edges (connections)	{(You, Alice), (Alice, Bob), …}

Types of Graphs

Type	Description	Example
Undirected	Edges have no direction; mutual relationship	Friendship network
Directed (Digraph)	Edges have direction (A→B ≠ B→A)	Twitter follows, web links
Weighted	Each edge carries a numeric value	Road distances, transaction amounts
Bipartite	Nodes split into two groups; edges only between groups	Users ↔ Movies
Multigraph	Multiple edges allowed between same pair	Multiple flights between two cities

Key Terminology

Term	Definition	Example
Degree	Number of edges connected to a node	Alice has degree 3 (connected to You, Bob, Charlie)
Path	A sequence of nodes connected by edges	You → Alice → Bob → David
Shortest Path	The path with fewest hops (or lowest weight)	The path of length 3 above is the only way to reach David
Cycle	A path that starts and ends at the same node	You → Alice → Charlie → You
Connected	Every node can reach every other node	Our university graph is connected
Component	A maximal connected subgraph	Disconnecting Alice would create two components

---

import networkx as nx
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import numpy as np
import pandas as pd
from collections import deque
import warnings
warnings.filterwarnings('ignore')

# Consistent figure style
plt.rcParams['figure.figsize'] = (9, 5)
plt.rcParams['font.family'] = 'DejaVu Sans'

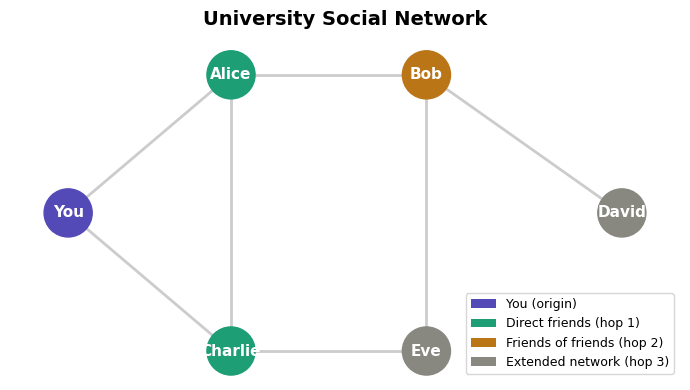

# ── Build the university social graph ──────────────────────────────────────
G = nx.Graph()

nodes = ['You', 'Alice', 'Bob', 'Charlie', 'David', 'Eve']
edges = [
    ('You', 'Alice'),
    ('You', 'Charlie'),
    ('Alice', 'Bob'),
    ('Alice', 'Charlie'),
    ('Bob', 'David'),
    ('Bob', 'Eve'),
    ('Charlie', 'Eve'),
]

G.add_nodes_from(nodes)
G.add_edges_from(edges)

# ── Node colours by distance from 'You' ────────────────────────────────────
color_map = {
    'You':     '#534AB7',
    'Alice':   '#1D9E75',
    'Charlie': '#1D9E75',
    'Bob':     '#BA7517',
    'David':   '#888780',
    'Eve':     '#888780',
}
node_colors = [color_map[n] for n in G.nodes()]

pos = {
    'You':     (0,   1),
    'Alice':   (1,   2),
    'Charlie': (1,   0),
    'Bob':     (2.2, 2),
    'Eve':     (2.2, 0),
    'David':   (3.4, 1),
}

fig, ax = plt.subplots(figsize=(7, 4))
nx.draw_networkx(
    G, pos, ax=ax,
    node_color=node_colors, node_size=1200,
    font_color='white', font_weight='bold', font_size=11,
    edge_color='#cccccc', width=2,
)

legend_elements = [
    mpatches.Patch(facecolor='#534AB7', label='You (origin)'),
    mpatches.Patch(facecolor='#1D9E75', label='Direct friends (hop 1)'),
    mpatches.Patch(facecolor='#BA7517', label='Friends of friends (hop 2)'),
    mpatches.Patch(facecolor='#888780', label='Extended network (hop 3)'),
]
ax.legend(handles=legend_elements, loc='lower right', fontsize=9)
ax.set_title('University Social Network', fontsize=14, fontweight='bold', pad=15)
ax.axis('off')
plt.tight_layout()
plt.show()

print(f"Nodes : {G.number_of_nodes()}")
print(f"Edges : {G.number_of_edges()}")
print(f"Density: {nx.density(G):.3f}")

Nodes : 6
Edges : 7
Density: 0.467

Applications of Graphs

Graphs are not just academic; they power real-world systems:

• Navigation (Google Maps): Road networks are weighted directed graphs: nodes are intersections, edges are road segments, weights are travel times that update in real time from GPS data. Dijkstra and A* (which uses geographic distance as a heuristic to guide search) find your route. The challenge is scale: the US road network has ~50 million nodes.

Nodes → locations, Edges → roads (Used for shortest path).

• Social Networks: Facebook’s social graph had ~3 billion nodes at last public reporting. It powers friend recommendations (who shares many mutual friends with you?), feed ranking, and ad targeting. The graph is stored in a custom distributed system called TAO.

Nodes → users, Edges → connections (Used for recommendations).

• Recommendation Systems: Graphs like “Bipartite” (where every edge connects a vertex from one set to a vertex from the other set.) connect users to items they’ve interacted with. Collaborative filtering (we will discuss this in later chapter) asks: which items are connected to users similar to you? More sophisticated approaches use graph neural networks that propagate information through multi-hop neighborhoods. Web search and PageRank

Nodes → users + products,Edges → interactions

• Web Search: The web is a directed graph with ~60 trillion pages. PageRank assigns each page a score equal to the sum of PageRank scores of pages linking to it, divided by their out-degree — a recursive definition solved as an eigenvector computation. Pages cited by authoritative pages inherit authority.

Nodes → webpages, Edges → hyperlinks

• Biology and medicine: Protein-protein interaction networks reveal which proteins work together. Metabolic networks model how cells convert nutrients to energy. Drug repurposing finds new uses for existing drugs by identifying proteins structurally close to a disease target in the interaction graph. Graph neural networks now power breakthrough protein structure prediction tools.

• Fraud detection: Financial transaction graphs detect anomalous patterns — cycles of transactions that suggest money laundering, or suspicious clustering of accounts. Graph-based features dramatically outperform purely tabular approaches for this problem.

Domain	Nodes	Edges	Algorithm used
Navigation (Google Maps)	Intersections	Roads	Dijkstra / A*
Social Networks (Facebook)	Users	Friendships	Community detection, BFS
Recommendations (Netflix)	Users + Movies	Ratings/views	Collaborative filtering, GNN
Web Search (Google)	Web pages	Hyperlinks	PageRank
Biology	Proteins	Interactions	Centrality, clustering
Fraud Detection	Accounts	Transactions	Anomaly detection
Supply Chain	Warehouses/ports	Routes	Min-cost flow

Graph Processing

Once we build a graph, we analyze it.

Common Tasks:

• Traversal (BFS, DFS): Systematically explore all nodes and edges in a graph.

• Shortest Path: Find the minimum-cost route between two nodes.

• Community Detection: Identify groups of densely connected nodes.

• Ranking nodes: Measure and rank node importance based on structure

• Link prediction: Predict likely future or missing connections between nodes.

Insight: Graph processing = turning connections into decisions

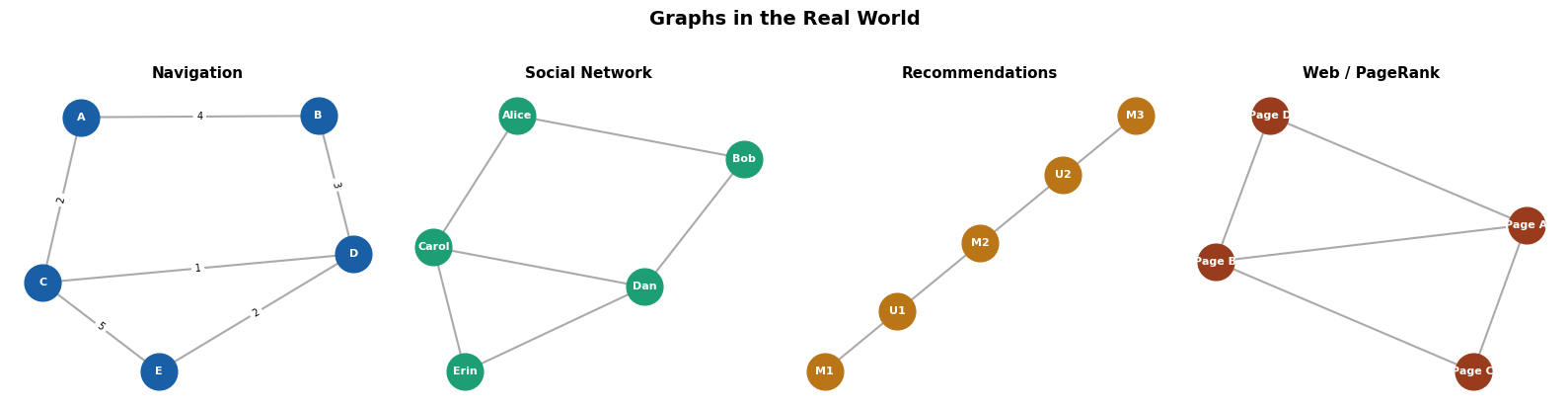

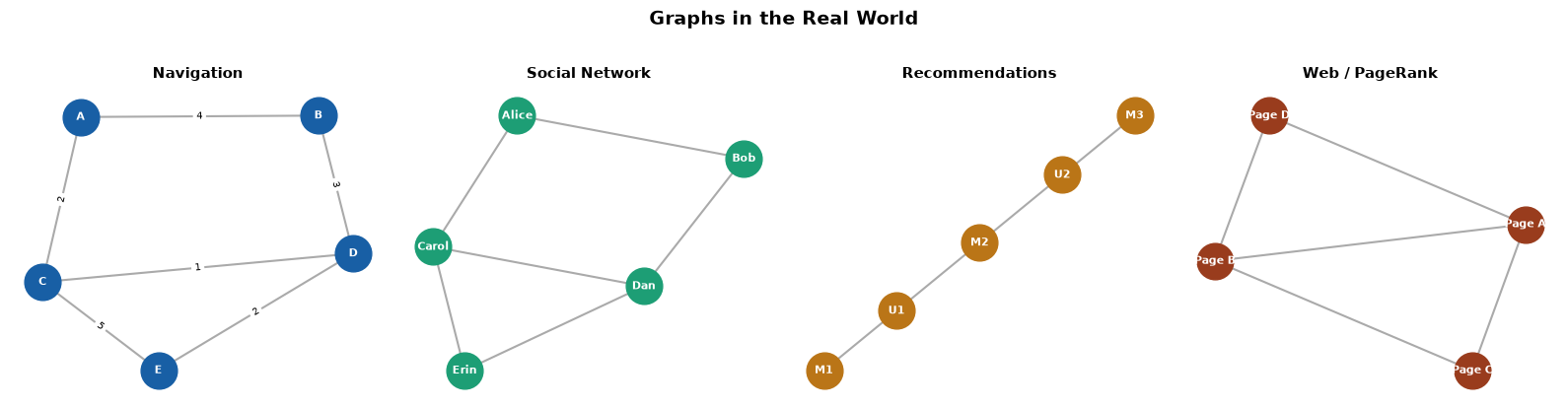

# ── Visualise four application domains side by side ─────────────────────────
fig, axes = plt.subplots(1, 4, figsize=(16, 4))
fig.suptitle('Graphs in the Real World', fontsize=14, fontweight='bold', y=1.02)

configs = [
    {
        'title': 'Navigation',
        'nodes': ['A','B','C','D','E'],
        'edges': [('A','B',4),('A','C',2),('B','D',3),('C','D',1),('C','E',5),('D','E',2)],
        'color': '#185FA5',
        'weighted': True,
    },
    {
        'title': 'Social Network',
        'nodes': ['Alice','Bob','Carol','Dan','Erin'],
        'edges': [('Alice','Bob'),('Alice','Carol'),('Bob','Dan'),('Carol','Dan'),('Dan','Erin'),('Carol','Erin')],
        'color': '#1D9E75',
        'weighted': False,
    },
    {
        'title': 'Recommendations',
        'nodes': ['U1','U2','M1','M2','M3'],
        'edges': [('U1','M1'),('U1','M2'),('U2','M2'),('U2','M3')],
        'color': '#BA7517',
        'weighted': False,
    },
    {
        'title': 'Web / PageRank',
        'nodes': ['Page A','Page B','Page C','Page D'],
        'edges': [('Page A','Page B'),('Page B','Page C'),('Page C','Page A'),('Page D','Page B'),('Page A','Page D')],
        'color': '#993C1D',
        'weighted': False,
    },
]

for ax, cfg in zip(axes, configs):
    if cfg['weighted']:
        Gi = nx.Graph()
        Gi.add_nodes_from(cfg['nodes'])
        for u, v, w in cfg['edges']:
            Gi.add_edge(u, v, weight=w)
    else:
        Gi = nx.Graph()
        Gi.add_nodes_from(cfg['nodes'])
        Gi.add_edges_from(cfg['edges'])

    pos_i = nx.spring_layout(Gi, seed=42)
    nx.draw_networkx(
        Gi, pos_i, ax=ax,
        node_color=cfg['color'], node_size=700,
        font_color='white', font_size=8, font_weight='bold',
        edge_color='#aaaaaa', width=1.5,
        arrows=('Page' in cfg['nodes'][0]),
    )
    if cfg['weighted']:
        labels = nx.get_edge_attributes(Gi, 'weight')
        nx.draw_networkx_edge_labels(Gi, pos_i, edge_labels=labels, ax=ax, font_size=7)
    ax.set_title(cfg['title'], fontsize=11, fontweight='bold', pad=8)
    ax.axis('off')

plt.tight_layout()
plt.show()
